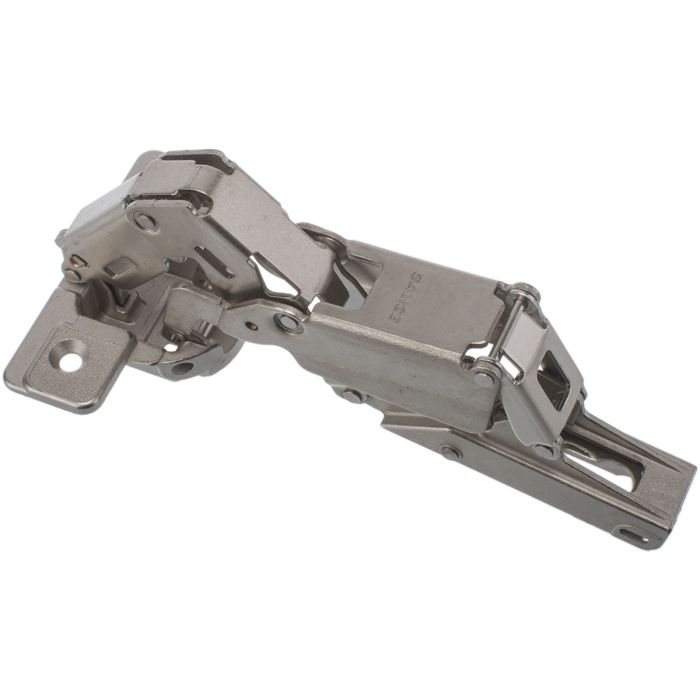

SALICE Hinge Series 200 165° Full Overlay C2PFD99

SALICE Series 200 165° Concealed hinge for full overlay door C2PFD99.

Technical information
- 165° Opening angle
- Automatic closing
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional or snap-on assembly of the door.

Mounting plate is not included and has to be ordered separately.
40 in stock
SKU 201793
Weight (Kg) 0.161000
K 3-8 mm
Drilling depth 11 mm
ø 35 mm
H= H=10+K-(D)
Material Steel / Zamak
Fixings Wood Screw
Finish Nickel Plated
Opening angle 165°
DP 45 x 9,5
