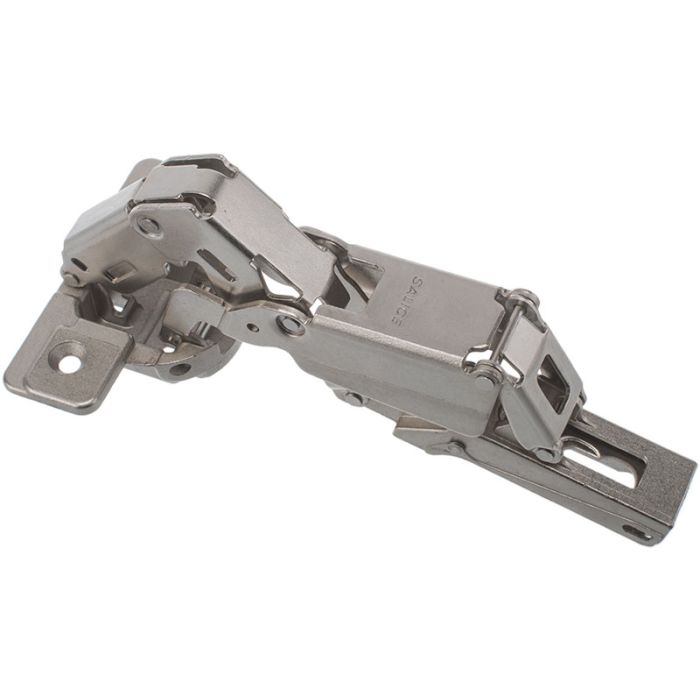

SALICE Hinge Series 200 165° Full Overlay C2PFA99
SALICE Series 200 165° Concealed hinge for full overlay door C2PFA99.
Technical information
- 165° Opening angle
- Automatic closing
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
Technical information
- 165° Opening angle
- Automatic closing
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
100 ordered
$6.08
| SKU | 200064 |
|---|---|
| Weight (Kg) | 0.162000 |
| K | 3-8 mm |
| Drilling depth | 11 mm |
| ø | 35 mm |
| H= | H=15+K-(D) |
| Material | Steel / Zamak |
| Fixings | Wood Screw |
| Finish | Nickel Plated |
| Opening angle | 165° |
| DP | 45 x 9,5 |
