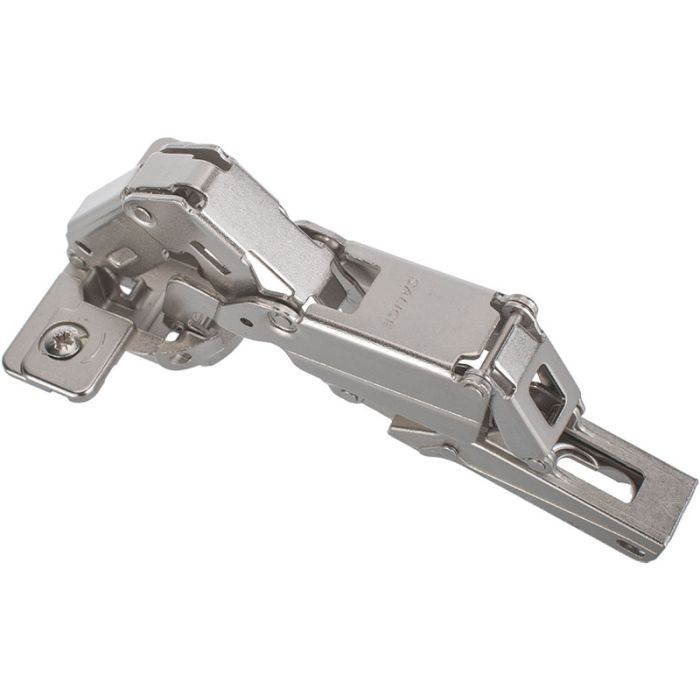

SALICE Hinge Series 200 165° Full Overlay C27EA99
SALICE Series 200 165° concealed unsprung hinge for full overlay door C27EA99.
Technical information
- 165° Opening angle
- Without spring
- Hole pattern: 45 x 9,5 mm
- Rapido fast mounting
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
Technical information
- 165° Opening angle
- Without spring
- Hole pattern: 45 x 9,5 mm
- Rapido fast mounting
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
189 in stock
$6.88
| SKU | 200464 |
|---|---|
| Weight (Kg) | 0.158000 |
| K | 3-8 mm |
| Drilling depth | 11 mm |
| ø | 35 mm |
| H= | H=15+K-(D) |
| Material | Steel / Zamak |
| Fixings | Rapido |
| Finish | Nickel Plated |
| Opening angle | 165° |
| DP | 45 x 9,5 |
