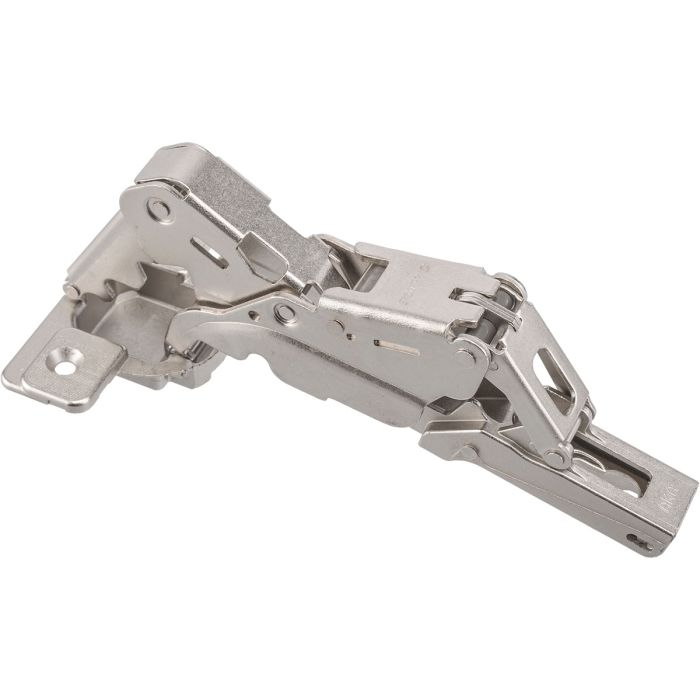

SALICE Hinge Series 200 155° Full Overlay C2PKA99
SALICE Series 200 155° Concealed hinge for full overlay door C2PKA99.
Technical information
- 155° Opening angle
- Automatic closing
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 8 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
Technical information
- 155° Opening angle
- Automatic closing
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 8 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
149 in stock
$6.78
| Version | Gångjärn C2PMA99 |
|---|---|
| SKU | 202795 |
| Weight (Kg) | 0.162000 |
| K | 3-8 mm |
| Drilling depth | 8 mm |
| ø | 35 mm |
| Material | Steel / Zamak |
| Fixings | Wood Screw |
| Finish | Nickel Plated |
| Opening angle | 155° |
| DP | 45 x 9,5 |
