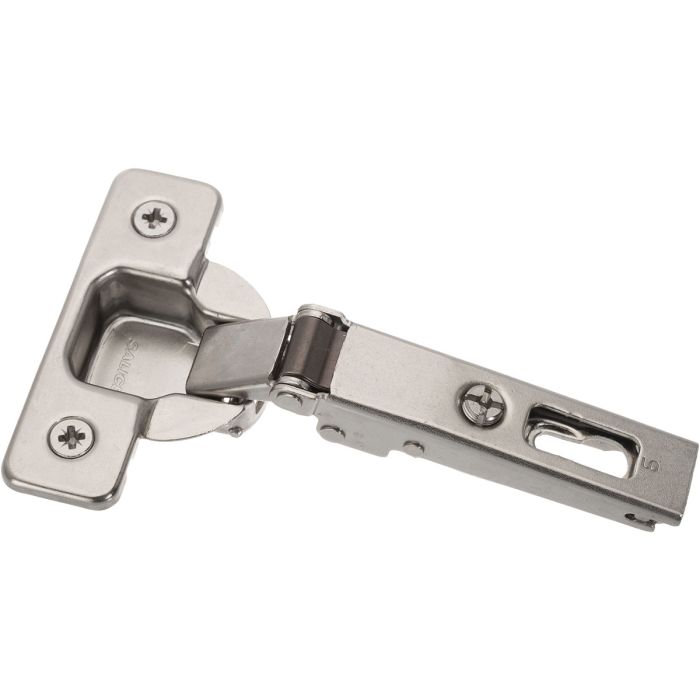

SALICE - Hinge Series 200 120° Full Overlay C2R9A99

Hinge – SALICE 120° self-closing furniture hinge for full overlay door with pre-mounted dowels (Knock-In), C2R9A99.
Features
- Possible drilling distance on door (K): from 3–6 mm
- Nickel-plated finish in steel
- Generous lateral adjustment, -1.5 to +4.5 mm
- Height and depth adjustment via mounting plate
- Knock-in installation
- 11 mm cup depth
- 120° generous opening angle
- Cup drilling pattern: 45 x 9,5 mm
SKU | 201335 |
---|---|
Weight (Kg) | 0.071000 |
Drilling depth | 11 mm |
ø | 35 mm |
