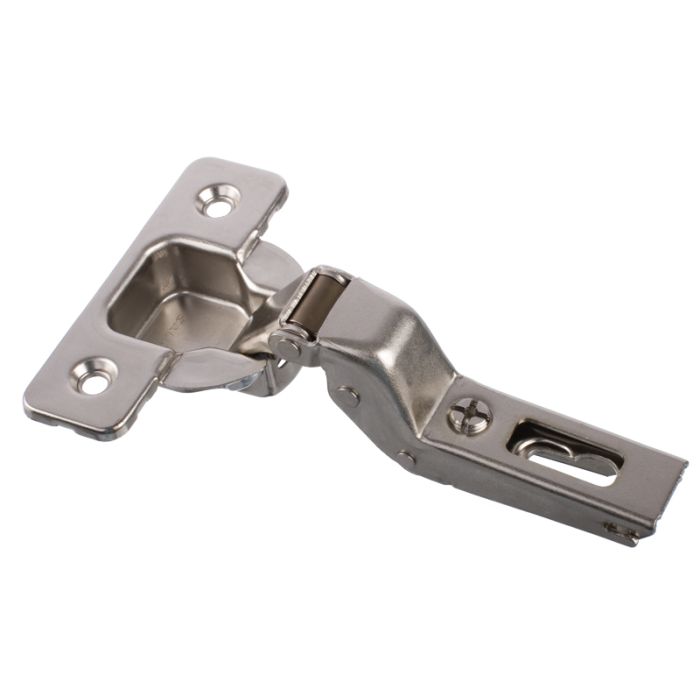

SALICE Hinge Series 200 110° Inset
SALICE Serie 200 Concealed hinge for inset door.
Technical information
- 110° Opening angle
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
Technical information
- 110° Opening angle
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
Product Name
Qty
SKU 200363
3327 in stock
SKU 200776
628 in stock
SKU 208285
266 in stock
| K | 3-6 mm |
|---|---|
| Drilling depth | 11 mm |
| ø | 35 mm |
| Material | Steel |
| Finish | Nickel Plated |
| Opening angle | 110° |
| Selectable products in the package | 200363, 200776, 208285 |
