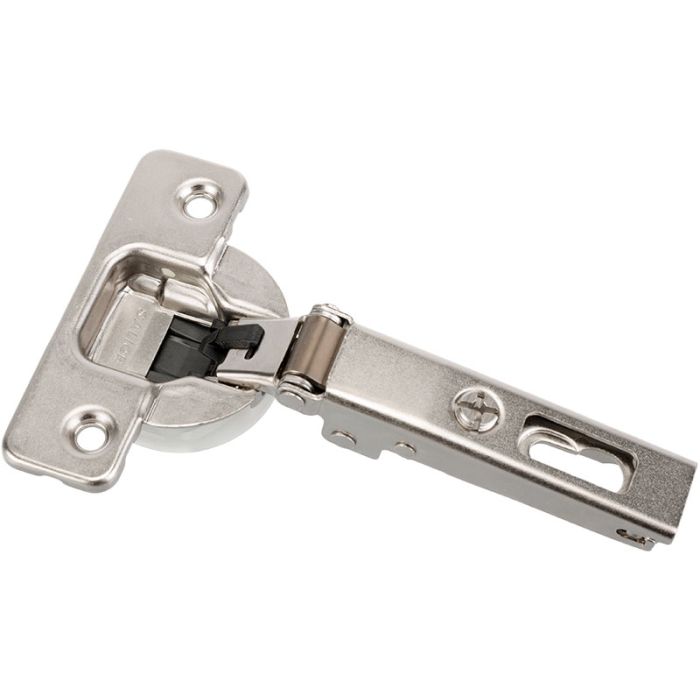

SALICE Hinge Series 100 Silentia+ 105° Full Overlay C1A6AE9
SALICE Series 100 105° Concealed hinge for full overlay door CAP6AE9.
Silentia+ is the second generation of Salice soft close hinges with two silicone oil dampers. Silentia+ is quipped with the innovative switch to delay the decelerating action. The activation of this switch allows, even to special doors, to obtain the ideal decelerating strength.
Technical information
- 105° Opening angle
- with integrated soft-close mechanism in the hinge cup
- Switch +/- to adjust the soft close
- Hole pattern: 48 x 6 mm
- Fixing with wood screw
- 12 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
Silentia+ is the second generation of Salice soft close hinges with two silicone oil dampers. Silentia+ is quipped with the innovative switch to delay the decelerating action. The activation of this switch allows, even to special doors, to obtain the ideal decelerating strength.
Technical information
- 105° Opening angle
- with integrated soft-close mechanism in the hinge cup
- Switch +/- to adjust the soft close
- Hole pattern: 48 x 6 mm
- Fixing with wood screw
- 12 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
296 in stock
$4.28
| SKU | 219322 |
|---|---|
| Weight (Kg) | 0.080000 |
| K | 3-6 mm |
| Drilling depth | 12 mm |
| ø | 35 mm |
| H= | H=15+K-(D) |
| Material | Steel |
| Fixings | Wood Screw |
| Finish | Nickel Plated |
| Opening angle | 105° |
| DP | 48 x 6 |
