SALICE - Hinge Series 100 105° Inset C1A6P99

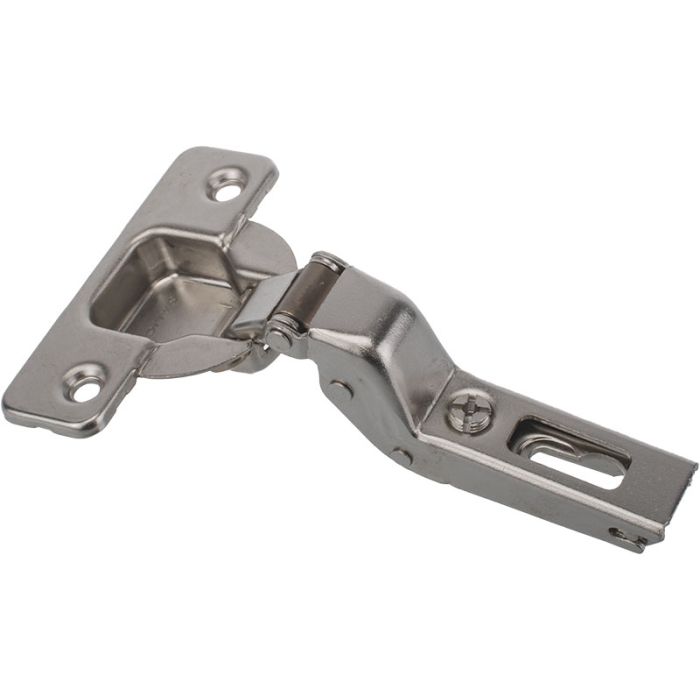

SALICE Series 100 105° Concealed hinge for inset door, only 8 mm drilling depth, C1A6P99.
Technical information
- 105° Opening angle
- Automatic closing (with spring)
- Hole pattern: 48 x 6 mm
- Fixing with wood screw
- 8 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
Technical information
- 105° Opening angle
- Automatic closing (with spring)
- Hole pattern: 48 x 6 mm
- Fixing with wood screw
- 8 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
225 in stock
$2.68
SKU | 208870 |
---|---|
Weight (Kg) | 0.061000 |
K | 3-6 mm |
Drilling depth | 8 mm |
ø | 35 mm |
H= | H=-2+K+A |
Material | Steel |
Fixings | Wood Screw |
Finish | Nickel Plated |
Opening angle | 105° |
DP | 48 x 6 |
