SALICE - Hinge Series 100 105° Half Overlay C1A6G99

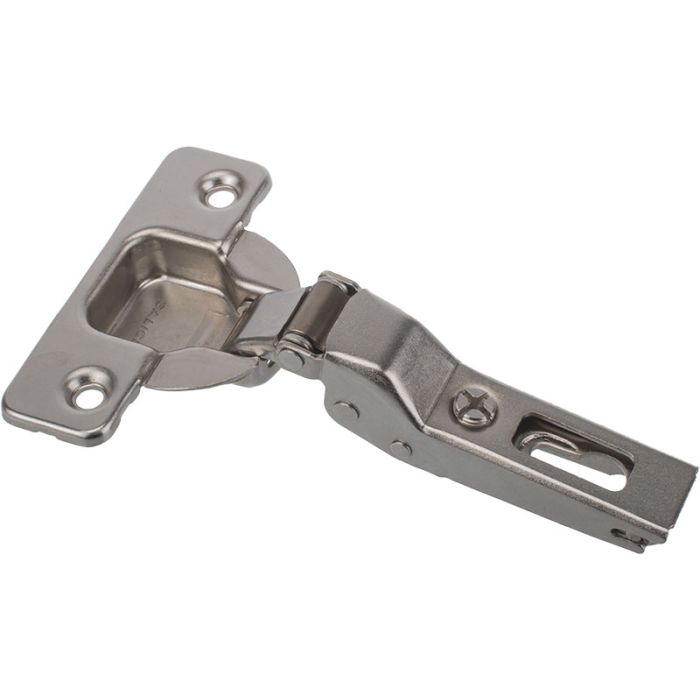

SALICE Series 100 105° Concealed hinge for half overlay door, only 8 mm drilling depth, C1A6G99.

Technical information
- 105° Opening angle
- Automatic closing (with spring)
- Hole pattern: 48 x 6 mm
- Fixing with wood screw
- 8 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.

Mounting plate is not included and has to be ordered separately.
182 in stock
SKU 202239
Weight (Kg) 0.059000
K 3-6 mm
Drilling depth 8 mm
ø 35 mm
H= H=6+K-(D)
Material Steel
Fixings Wood Screw
Finish Nickel Plated
Opening angle 105°
DP 48 x 6
