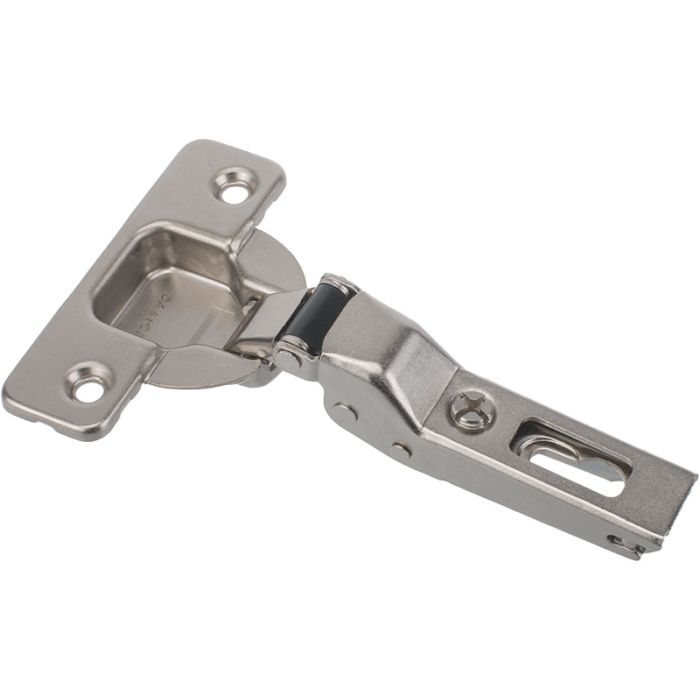

SALICE - Hinge Series 100 105° Half Overlay C1A4G99
SALICE Series 100 105° Concealed hinge for half overlay door, only 8 mm drilling depth, without spring, C1A4G99.
Technical information
- 105° Opening angle
- Without spring
- Hole pattern: 48 x 6 mm
- Fixing with wood screw
- 8 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
Technical information
- 105° Opening angle
- Without spring
- Hole pattern: 48 x 6 mm
- Fixing with wood screw
- 8 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
123 in stock
$2.48
| SKU | 201852 |
|---|---|
| Weight (Kg) | 0.057000 |
| Drilling depth | 8 mm |
| ø | 35 mm |
| H= | H=6+K-(D) |
| Material | Steel |
| Fixings | Wood Screw |
| Finish | Nickel Plated |
| Opening angle | 105° |
| DP | 48 x 6 |
