SALICE - Hinge Series 100 105° Full Overlay C1A6D99

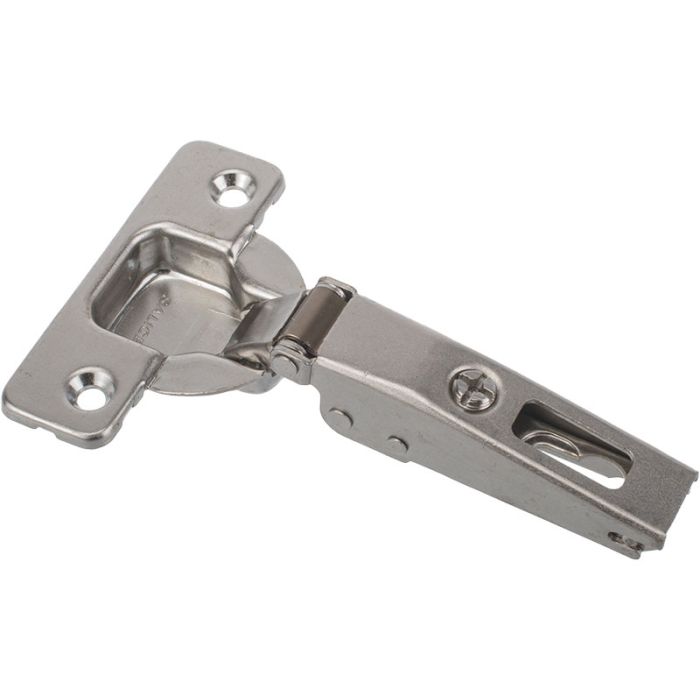

SALICE Series 100 105° Concealed hinge for full overlay door, only 8 mm drilling depth, C1A6D99.
Technical information
- 105° Opening angle
- Automatic closing (with spring)
- Hole pattern: 48 x 6 mm
- Fixing with wood screw
- 8 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
Technical information
- 105° Opening angle
- Automatic closing (with spring)
- Hole pattern: 48 x 6 mm
- Fixing with wood screw
- 8 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
532 in stock
$2.48
| SKU | 202238 |
|---|---|
| Weight (Kg) | 0.063000 |
| Drilling depth | 8 mm |
| ø | 35 mm |
| H= | H=10+K-(D) |
| Material | Steel |
| Fixings | Wood Screw |
| Finish | Nickel Plated |
| Opening angle | 105° |
| DP | 48 x 6 |
