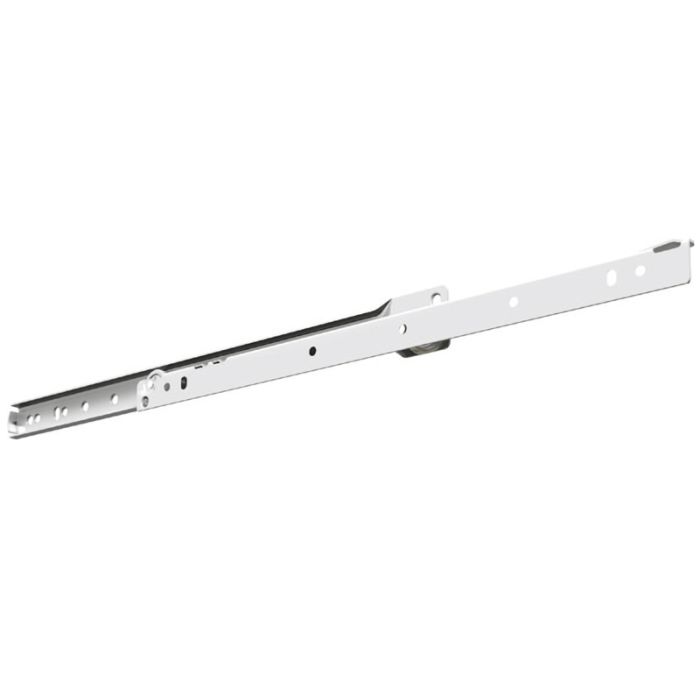

Roller Runner FR 1020 30 kg

Regular-Extension Drawer Slide FR 1020, white epoxy coated, load capacity 30 kg.
Features
- Side mounted
- Lateral stability provided by specially shaped profiles
- Integrated side adjustment - clearance adjustable up to 2 mm
- Double hole system on cabinet profile for offset attachment to thin inside walls
- Added strength of cabinet profile provided by special front flange
- Oblong holes in the cabinet profile permit easy height adjustments
- Dual detent in the drawer profile holds the drawer in place when extended
- Single-sided captive profile (left)
- Available in lengths from 300-700 mm

Delivery time out of stock items approx. 1-2 weeks.
Unit Pair
Feature Part Extension
Material Steel, white powder coated
Loading Capacity 30 kg
