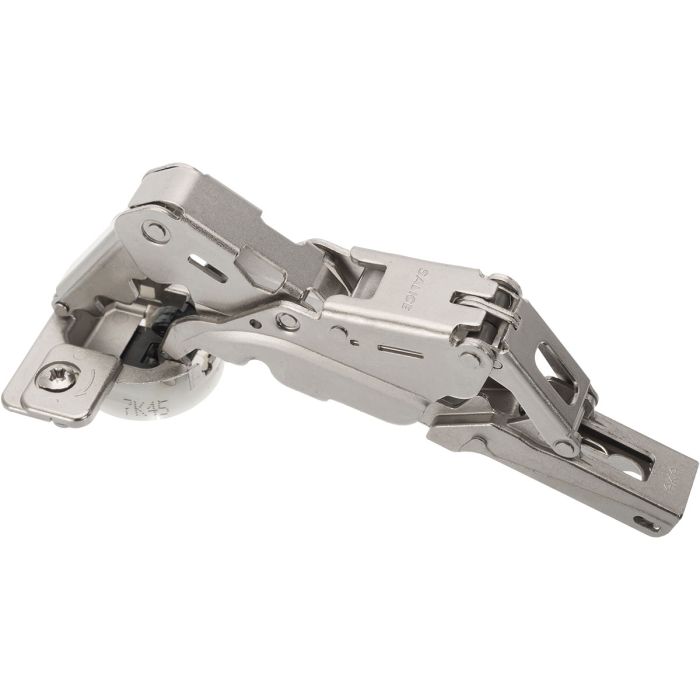

Hinge - SALICE Series 200 Silentia+ for thick doors 155° Full overlay C27KAE9

Hinge - SALICE Series 200 Silentia+ self-closing for thick doors 155° Full overlay with C27KAE9.
Silentia+ is the second generation of Salice’s soft-close hinges with dual hydraulic dampers under the cup.
Features
- Nickel-plated steel finish
- For thick doors, minimum 16 mm
- 13.5 mm deep cup (Ø 35 mm)
- 155° Opening angle
- Possible drilling distance on door (K): from 3-8 mm
- Drilling pattern: 45 x 9.5 mm
- Generous lateral adjustment options
- Height and depth adjustment via mounting plate
- Rapido fastening
SKU | 204045 |
---|---|
Weight (Kg) | 0.183500 |
Drilling depth | 13,5 mm |
ø | 35 mm |
