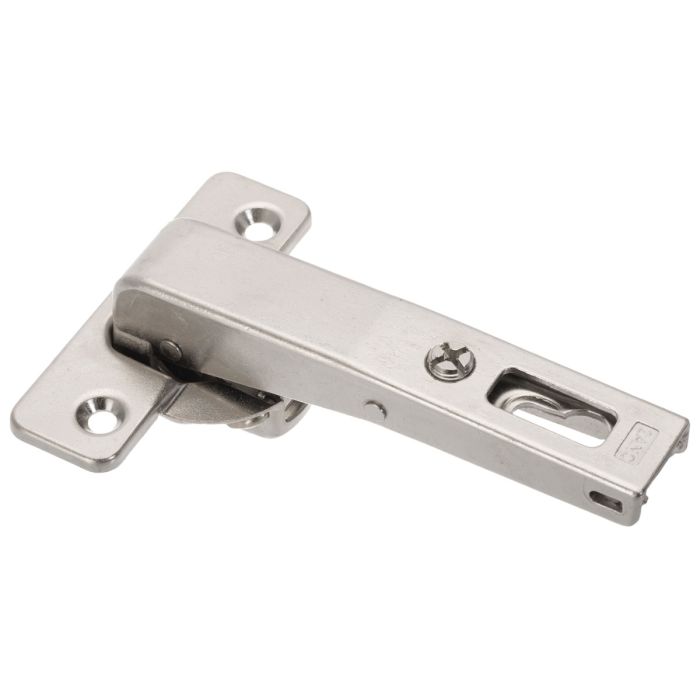

Hinge - SALICE Series 200 94° C2PBN99AC

Hinge - SALICE Series 200 94° self-closing furniture hinge for face frames C2PBN99AC.
Technical Information
- Possible drilling distance on the door (K): from 3 to 9 mm
- Nickel-plated steel construction
- Generous lateral adjustment range: -1.5 to +4.5 mm
- Height and depth adjustment via mounting plate
- Attachment with wood screws
- Cup hole pattern: 45 x 9.5 mm
SKU | 200062 |
---|---|
Weight (Kg) | 0.178000 |
Drilling depth | 11 mm |
ø | 35 mm |
