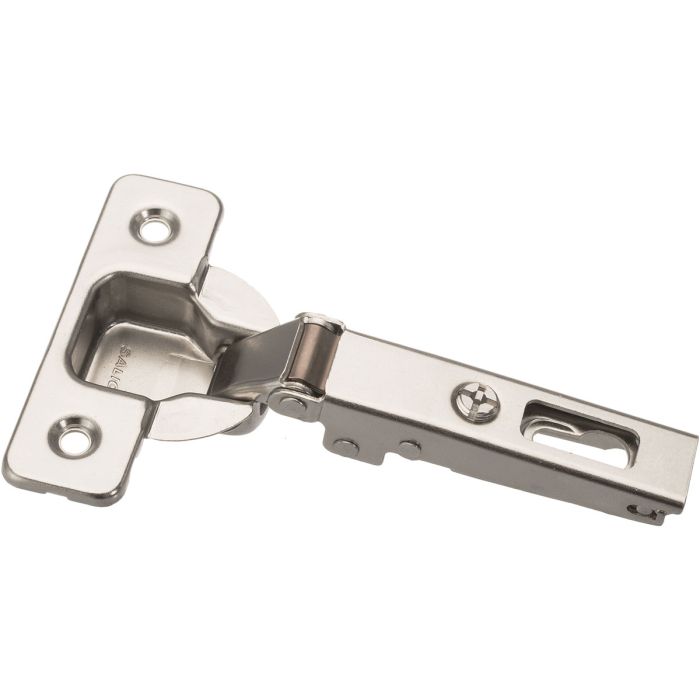

Hinge C2PBA99 Series 200 94° Full Overlay For Thick Doors

Hinge C2PBA99 Series 200 94° Full Overlay For Thick Doors. Min. 18 mm
Features
- Chrome-plated design made of steel
- Height and depth adjustment via mounting plate
- Fastening with wood screws
- Bore cup pattern: 45 x 9.5 mm
- Possible door bore distance (K): from 3-9 mm
- Bore depth 11 mm
SKU | 202192 |
---|---|
Weight (Kg) | 0.063000 |
Drilling depth | 11 mm |
ø | 35 mm |
Material | Steel |
Fixings | Wood Screw |
Finish | Nickel Plated |
Opening angle | 94° |
